Inspecting Room Databases in Android

Room is an ORM for SQLite on Android. Inspecting your Room database can help with debugging and development. Here are some common methods:

1. Using Android Studio Device Inspector

You can inspect databases directly from Android Studio:

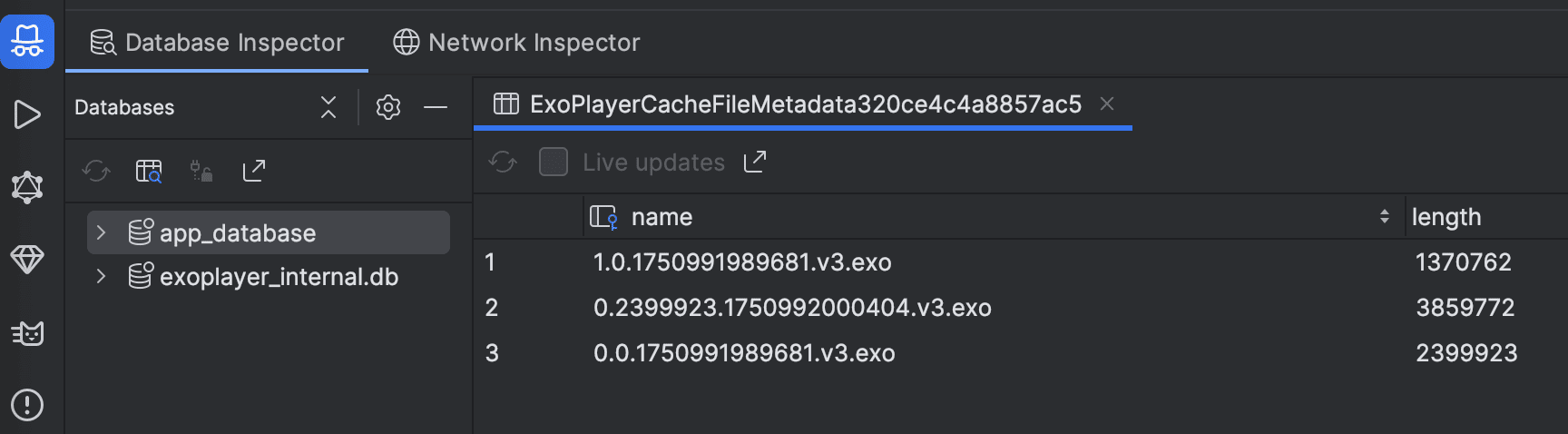

Android Studio Device Inspector

  1. Connect your device or emulator.
  2. Open View > Tool Windows > Device Explorer.
  3. Navigate to data/data/{your.package.name}/databases/.
  4. Download the database file and open it with the built-in Database Inspector.

2. Using sqlite3 and ADB

You can pull the database file from your device and inspect it with sqlite3.

Find the Database Name

The database name is set in your Room.databaseBuilder call. For example:

Room.databaseBuilder(
    androidContext().applicationContext,
    AppDatabase::class.java, "app_database"
).fallbackToDestructiveMigration(false).build()

In this case, the database name is app_database.

Get the Database Path

You can print the database path in your code:

println(getDatabasePath("app_database"))

Pull the Database File

Replace {your.package.name} with your app’s package name:

for file in $(adb shell 'ls /data/user/0/{your.package.name}/databases/app_database*'); do
  adb pull $file
done

Inspect with sqlite3

sqlite3 app_database

Now you can run SQL queries directly on your Room database.

View sqlite3 commands here.
